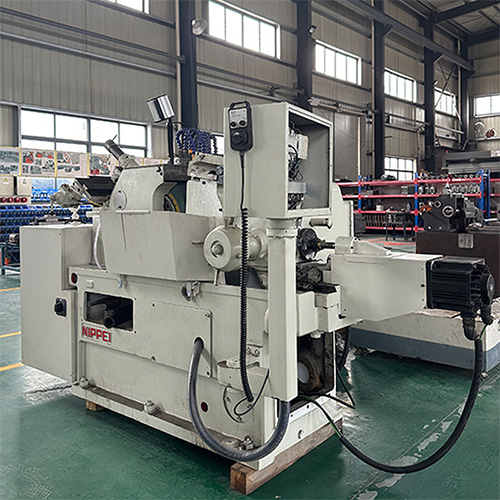

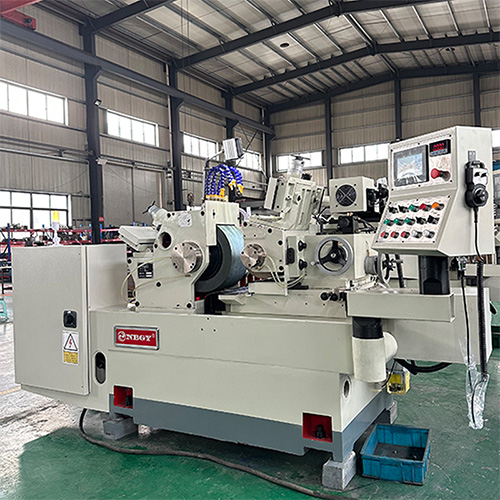

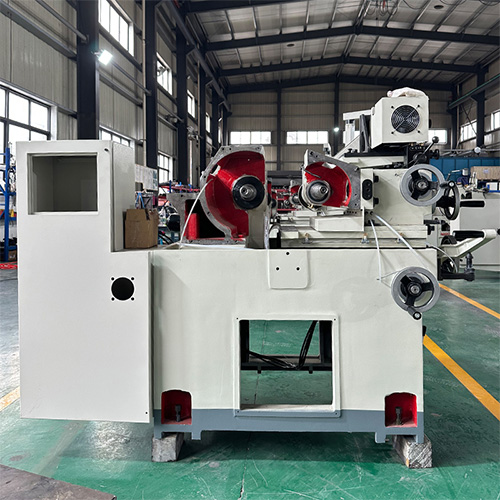

High Precision 0.0001mm Centerless Grinding Machines

Product Introduction:

This High Precision 0.0001mm Centerless Grinding Machines is a high-performance, high-precision and high-efficiency centerless grinding machine developed by us. The machine tool bed is made with German cast iron technology and is precisely processed by our own Haitian gantry machining center to ensure accuracy. The entire machine is equipped with electrical facilities from Siemens, and the grinding wheel spindle adopts a Taiwanese brand.

The guide rail surface undergoes high-frequency quenching, precision grinding, and manual scraping, with high wear resistance and rigidity. Stable bed structure design, the machine tool has extremely high overall accuracy.

The spindle seat of 18 series manual centerless grinding machine adopts a high hydrostatic pressure patent, which can form a high-pressure oil film of 20-25KG/cm2, allowing the spindle to suspend in it. During operation, there is no contact or friction with the spindle seat, resulting in high rigidity and no wear, ensuring high-precision machining and ultra long working life.

Machine's Parameters:

Product features and applications:Hydrodynamic spindle/hydrostatic spindle

The core shaft of the hydrodynamic main shaft is made of SNCM-220H alloy steel and processed through more than ten procedures. It is manually and repeatedly matched, ground, scraped and assembled with alloy bearings, and is equipped with a lubrication system to ensure the rotational accuracy and rigidity of the main shaft.

2. The hydrostatic spindle is our featured main product. The spindle is supported by a high-pressure oil film, with no contact friction, reducing power consumption, improving precision and shock absorption performance for our High Precision 0.0001mm Centerless Grinding Machines.

3. Rolling bearing main shaft

Ultra-precision double-row cylindrical roller bearings are selected, lubricated with grease, and require no maintenance in daily use. The unique design eliminates the need for flanges, making it suitable for high-precision grinding.

4. Trim the seats

The trimming seat is cast from a special alloy and hand-scratched. It is driven by variable-speed hydraulic power and can also be driven by a servo motor equipped with a precision ball screw to achieve stepless speed regulation.

5. Grinding wheel and guide wheel dressing

According to the requirements of the workpiece grinding process, the dressing of grinding wheels and guide wheels is divided into diamond pen dressing, diamond disc dressing, and diamond profile roller dressing. In special circumstances, the diamond disc dressing wheel can be replaced.

Application:

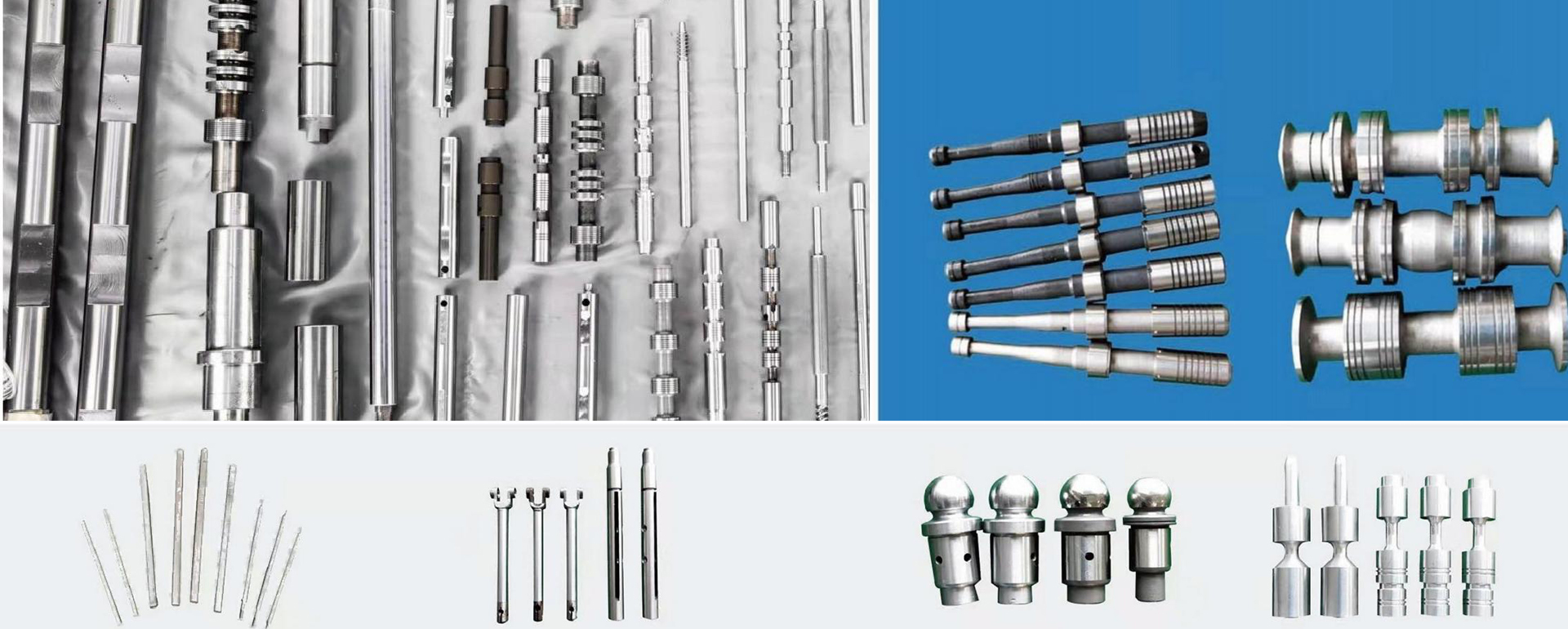

This High Precision 0.0001mm Centerless Grinding Machines has two types: dynamic pressure structure and static pressure structure. It is widely applied in precision manufacturing industries such as automotive and motorcycle parts, electrical appliances, office shafts, molds, cutting tools, tungsten steel, optical fibers, ceramics and glass, medical devices, military aerospace, and navigation.

FAQ:

1. You are a trader or a manufacture?

We are an industry and trade integration business.

2. How can I be sure the part will fit my excavator?

Give us correct model number/machine serial number/ any numbers on the parts itself.

Or measure the parts give us dimension or drawing.

3. How about the payment terms?

We usually accept T/T(Wire Transfer). other terms also could be negotiated.

4. What is your minimum order?

It depends on what you are buying. Normally, 1 pcs also can be suppllied.

5. What is your delivery time?

FOB Ningbo port or any Chinese port : 30 days . If there are any parts in stock , our delivery time is only 1-5 days.

6. What about Quality Control?

We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
