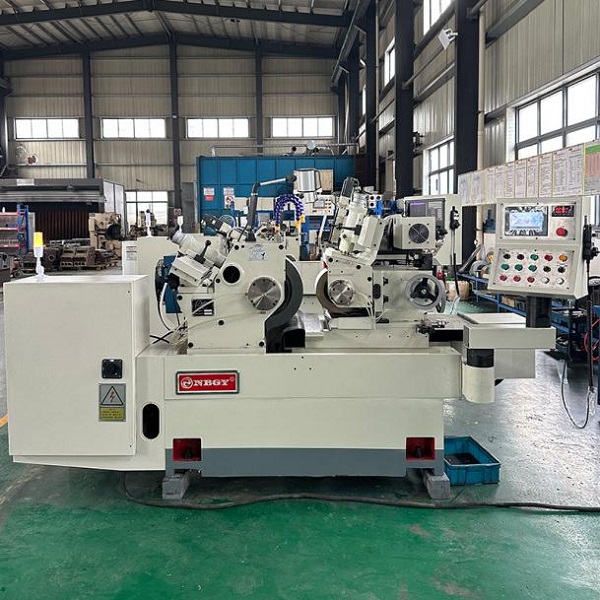

High-Performance Centerless Grinding Machine Made in China

Ningbo CCMS Machinery Industry Co., Ltd. is a professional manufacturer of centerless grinding machines with ten years of global supply experience. As a well-known industrial manufacturer in China, we integrate R&D, production, and sales and are also a trustworthy supplier of centerless grinding machines. Our products cover 12- and 18-type manual and CNC models, including one-axis, three-axis, and five-axis CNC models, which can be customized according to mass production needs, backed by a reliable factory system.

What is a centerless grinding machine?

A centerless grinding machine is a high-precision machine tool that can perform external cylindrical grinding without workpiece axis positioning. It uses the three core components—grinding wheel, guide wheel, and support plate—to collaboratively position and process the workpiece, making it suitable for high-volume, high-efficiency, and high-precision external cylindrical, conical, and irregularly shaped parts.

Core Structure

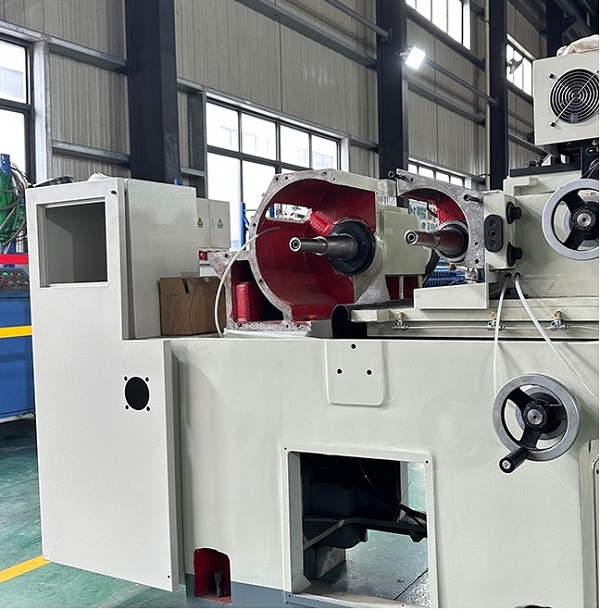

The centerless grinding machine mainly consists of a grinding wheel assembly, guide wheel assembly, support plate, bed, cooling system, and control system (manual/CNC). The grinding wheel removes material, the guide wheel controls workpiece rotation and axial feed, and the support plate ensures workpiece stability during grinding.

Three Main Grinding Methods

• Through Grinding: The guide wheel is tilted at a certain angle, automatically feeding the workpiece axially through the grinding zone. Suitable for continuous machining of long cylindrical parts such as slender shafts and sleeves.
• Dive Grinding: The workpiece is axially fixed, and grinding is completed by radial feed through the guide wheel or grinding wheel. Suitable for workpieces with steps, cones, and complex curved surfaces.
• Composite Grinding: Combining the principles of through grinding and dive grinding, used for machining irregularly shaped workpieces requiring continuous grinding and local precision cutting.

Technical Features and Advantages

• High Efficiency: Continuous machining without tool retraction; with automatic loading and unloading devices, fully automated production can be achieved, greatly improving batch efficiency.
• Ultra-high Precision: Standard models achieve roundness up to 2μm and dimensional accuracy up to 4μm; high-precision models reach 0.5μm roundness and 1μm accuracy, ensuring consistent batch quality.
• Superior Rigidity: Enhanced rigidity of the support plate and guide wheel bracket reduces deformation and vibration, suitable for slender shafts and deep cutting operations.

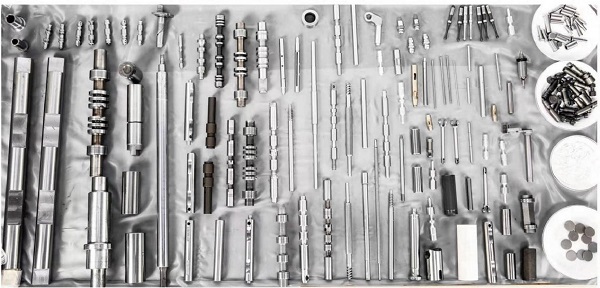

• Wide Adaptability: Suitable for steel, cast iron, cemented carbide, and other metals; applicable to slender cylinders, bearing rollers, automotive shafts, and cutting tools.

Product Series and Customization Services

• Manual Series: 12-type and 18-type manual centerless grinders, easy to operate and ideal for small batch or single-piece production.
• CNC Series:
  • Single-axis CNC: Cost-effective solution for standard processes.
  • Three-axis CNC: Multi-axis linkage for higher flexibility and complex parts.
  • Five-axis CNC: High-end precision control for ultra-complex shapes.
• Customization Services: Machine structure, control systems, grinding parameters, and automation configurations can be tailored to meet specific production needs.

Market Performance and Reputation

For more than a decade, the company's centerless grinding machines have been sold worldwide and widely recognized in automotive, bearing, machinery, aerospace, and tool manufacturing industries. With reliable quality, stable performance, and professional after-sales service, the company has maintained a leading position in the field of centerless grinding equipment.
