18 series 5 axis cnc centerless grinding machine

Ningbo CCMS is a professional factory specializing in centerless grinding machines with 20 years of industry experience. As a leading manufacturer in China, we have built a complete production system, deeply cultivate the European and American markets, and adhere to the philosophy of "precision first, customer foremost." We support customized solutions and are a trusted supplier in the precision manufacturing industry.

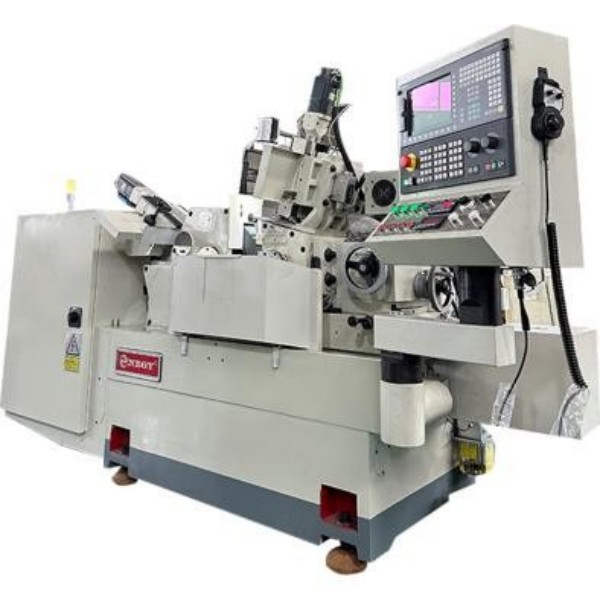

The 18 series 5 axis CNC centerless grinding machine is a core product independently developed by Ningbo CCMS. It integrates high performance, high precision, and high efficiency, achieving a grinding accuracy of 1 micrometer. It is suitable for grinding materials ranging from 1-60mm (40-120mm for special worktables). Utilizing CNC control, it is easy to operate and runs stably, making it suitable for various high-precision grinding scenarios.

Core Configuration and Technical Advantages

1. High-Precision Machine Bed
The 18 series 5 axis CNC centerless grinding machine bed adopts German cast iron technology and is precision-machined using our own Haitian gantry machining center. The guide rail surfaces undergo high-frequency quenching, precision grinding, and manual scraping, resulting in wear resistance and high rigidity, ensuring high-precision grinding.

2. Advanced Spindle Technology
The spindle housing utilizes a patented high hydrostatic pressure technology, forming a 20-25KG/cm² high-pressure oil film. This allows for frictionless, suspended spindle operation, resulting in high rigidity, wear-free operation, extended lifespan, and guaranteed precision. Three spindle options are available:
- Hydrostatic Spindle: Made of SNCM-220H alloy steel, processed through multiple steps and equipped with a lubrication system to ensure rotational accuracy and rigidity.
- Hydrostatic Spindle: A core feature, supported by a high-pressure oil film, offering low energy consumption, high precision, and excellent vibration damping.
- Rolling Bearing Spindle: Utilizes ultra-precision double-row cylindrical roller bearings, grease-lubricated and maintenance-free, with a flangeless design suitable for high-precision grinding.

3. High-Quality Components

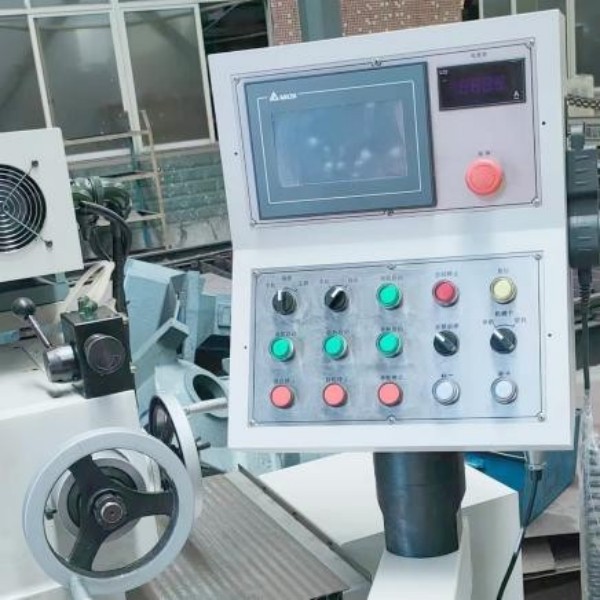

The 18 series 5 axis CNC centerless grinding machine is powered by Siemens electrical components, ensuring stable operation. The grinding wheel spindle uses a high-quality Taiwanese brand. The dressing seat is made of a special alloy and hand-scraped, allowing for stepless speed adjustment to suit various grinding processes.

4. Professional Dressing System

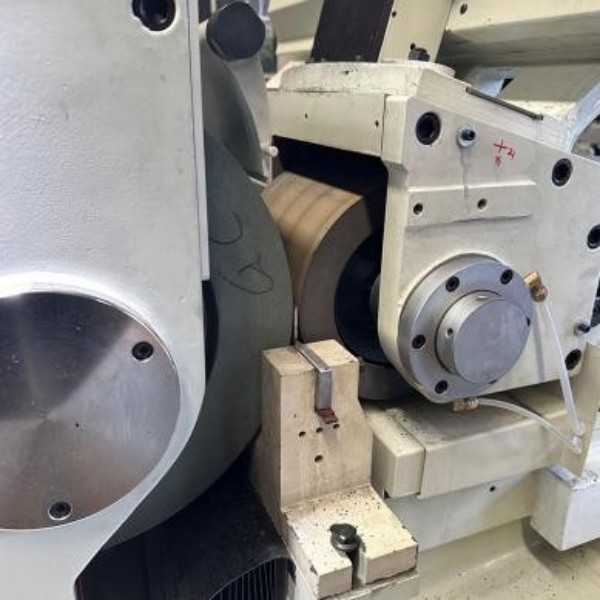

Grinding wheels and guide wheels can be dressed using three methods: diamond dressing wheel, disc dressing wheel, and forming roller. In special cases, a diamond disc dressing wheel can be used to flexibly ensure grinding precision.

Product Applications

The 18 series 5 axis CNC centerless grinding machine is available in both dynamic and static pressure structures. It is widely used in precision manufacturing fields such as automotive and motorcycle parts, molds, cutting tools, medical devices, and military and aerospace industries, and is core equipment for high-quality manufacturing enterprises.

Quality Control and Cooperation Support

1. Strict Quality Control
A comprehensive quality inspection system and a professional team conduct piece-by-piece inspections, monitoring the entire production process to ensure that equipment leaves the factory qualified.

2. Cooperation Terms
- Payment: Telegraphic transfer (T/T) accepted; other methods are negotiable.
- Minimum Order: 1 unit (depending on the product).
- Delivery Time: 30 days FOB China port; 1-5 days for in-stock items.
- Customization: Customization is supported, providing personalized solutions.

FAQ

- Q: Trader or manufacturer?
A: We integrate manufacturing and trading, providing one-stop service.

- Q: How do you ensure parts compatibility?
A: Provide the equipment model, dimensions, or drawings, and we will confirm the compatibility.

- Q: Can you customize?
A: We can customize according to processing requirements to meet individual needs.

Contact and Cooperation

Ningbo CCMS has 20 years of experience in the centerless grinder industry. As a reliable manufacturer and supplier in China, we uphold the principle of integrity and win-win cooperation and look forward to establishing long-term partnerships with global customers for mutual development.
