12 series 1 axis cnc centerless grinding machine

Ningbo CCMS Machinery Industry Co., Ltd. is a professional manufacturer of centerless grinding machines with 20 years of industry experience. As a leading manufacturer in China, the company has a complete industrial chain layout from R&D and production to sales, and has assembled a professional technical and production team to ensure the stability and reliability of each product.

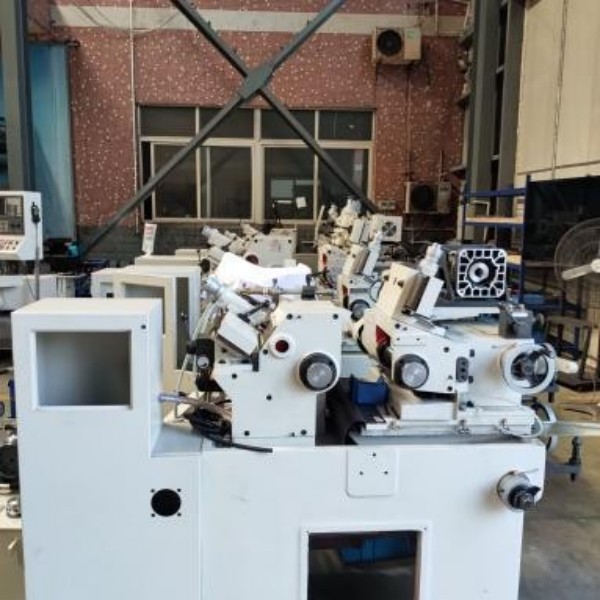

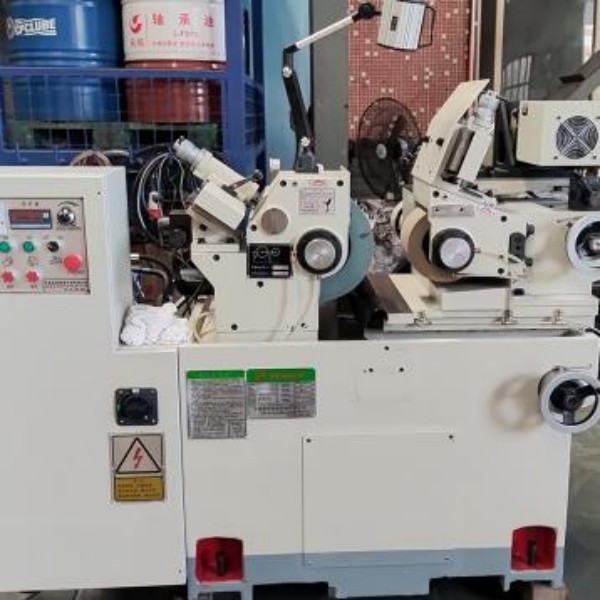

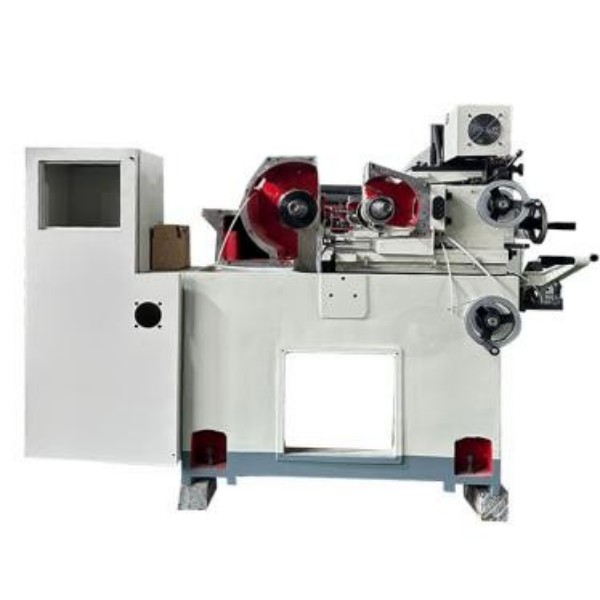

The 12 series 1 axis CNC centerless grinding machine launched by Ningbo CCMS is a high-precision machining equipment that integrates stability, efficiency, and flexibility. Adopting advanced CNC control technology and optimized structural design, it can meet the precision machining needs of various workpieces and supports customized production according to customer requirements, providing personalized solutions for different industries.

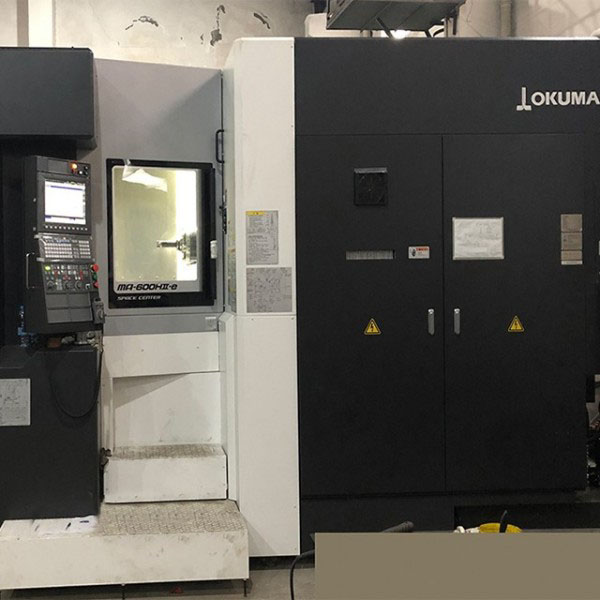

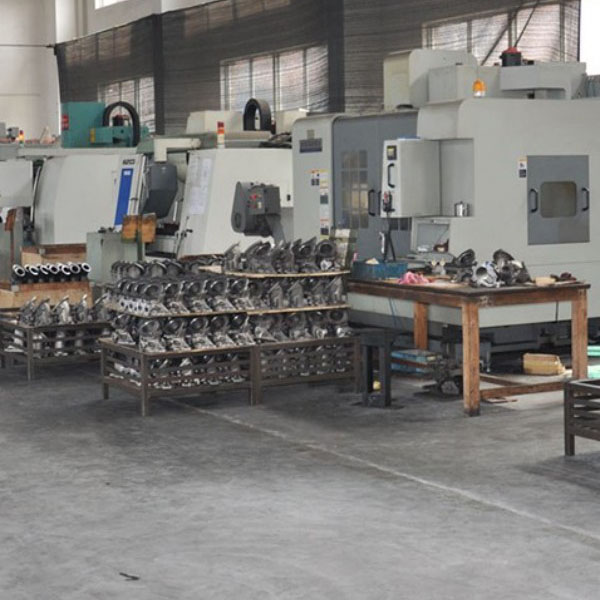

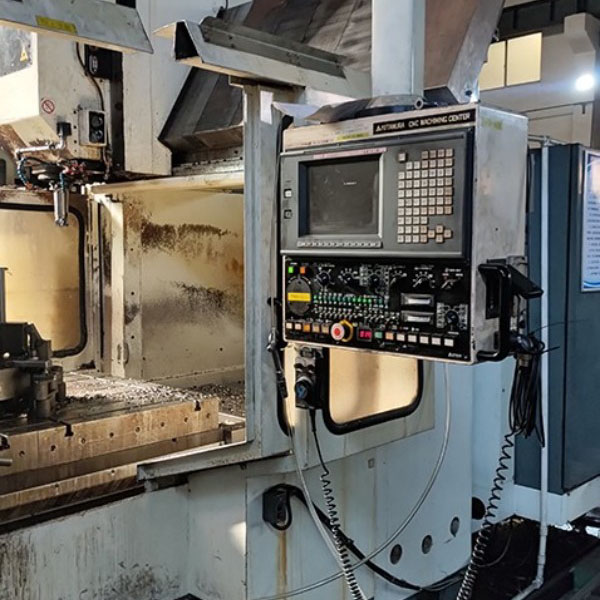

The company owns its own standardized production workshop, equipped with high-precision machining centers imported from South Korea and Japan, as well as a Haitian gantry machining center with an accuracy of 0.01mm and a Japanese imported guideway grinding machine (used for machining centerless grinding machine beds). Standardized workshop management eliminates poor production habits, ensuring consistent product quality and laying a solid foundation for becoming a globally trusted supplier.

Product Parameter:

Product Structure and Technical Advantages

1. Overall Structural Design
The bed of the 12 series 1 axis CNC centerless grinding machine is manufactured using a casting process, followed by natural aging and heat treatment. This effectively reduces internal stress in the bed, ensuring reasonable deformation during long-term operation, significantly improving durability and service life, and maintaining stable performance under high-intensity continuous operation.
Both the grinding wheel (GW) and guide wheel (RW) adopt a cantilever structure, greatly simplifying the wheel changing process and improving work efficiency. The grinding wheel (GW) is fixed to the bed, enhancing the reliability and stability of the equipment during grinding, avoiding deviations caused by wheel movement, and ensuring machining accuracy.
2. Precision Control System

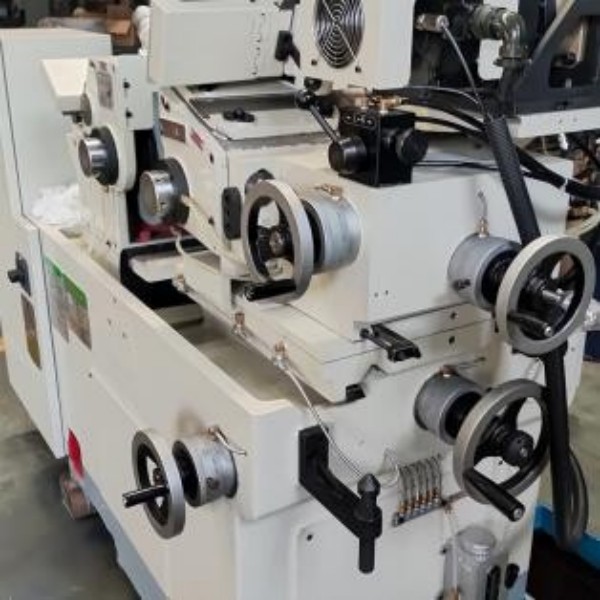

The 12 series 1 axis CNC centerless grinding machine is equipped with a cross-roller guide and a servo motor with a matching ball screw to support the guide wheel feed, ensuring smooth and precise feed motion. The servo motor drives the ball screw through a coupling, with a minimum feed amount of 0.001mm, achieving micron-level precision control to meet the high-precision machining requirements of various workpieces.
Dresser Design: The GW dresser uses a servo motor to drive the ball screw for feed and reciprocating motion, ensuring the dressing accuracy of the grinding wheel; the RW dresser uses a gear motor to drive the ball screw for reciprocating motion, supports stepless speed regulation, and is equipped with a dresser feed handwheel for flexible and convenient operation.

Product Application Scenarios

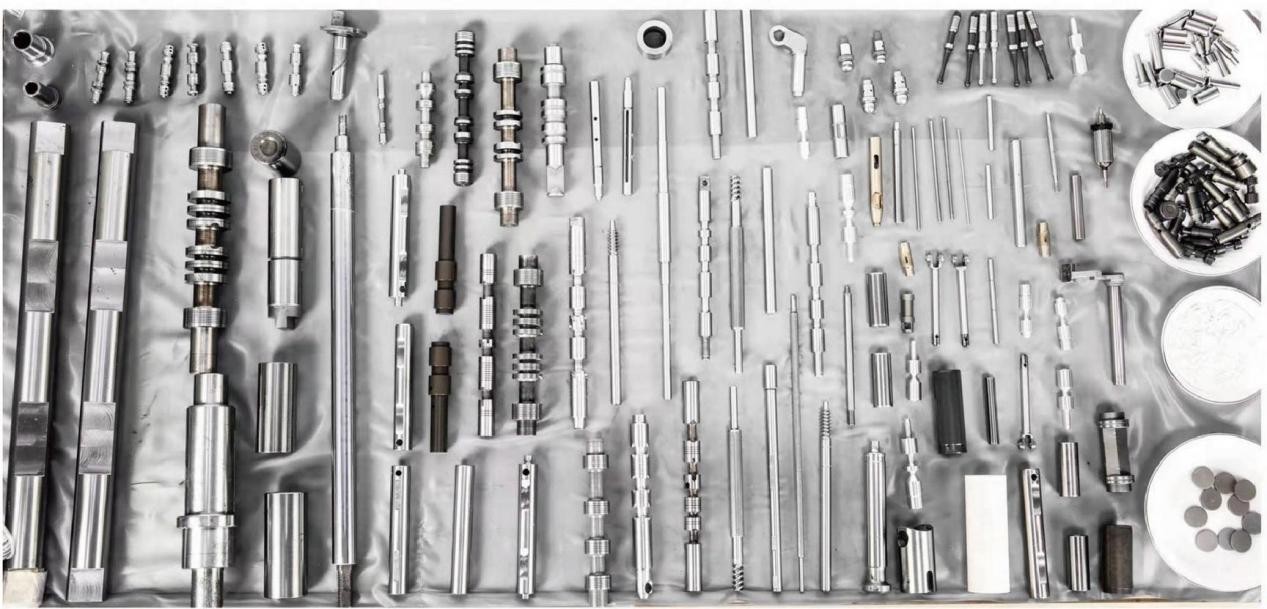

This 12 series 1 axis CNC centerless grinding machine is available in both hydrodynamic and hydrostatic structures, allowing for selection based on different processing needs. It covers a variety of precision machining scenarios and is widely used in precision manufacturing industries such as automotive and motorcycle parts, electrical appliances, office shafts, molds, cutting tools, tungsten steel, optical fibers, ceramics and glass, medical devices, military and aerospace, and marine industries. It is adaptable to the processing requirements of different materials and workpieces. With its high precision, high efficiency, and stable performance, it has been operating in the European and American markets for many years, winning recognition from numerous overseas customers and demonstrating the strength of China's manufacturing industry in the field of precision grinding machines.

Cooperation Commitment

As a professional manufacturer and supplier of 12 series 1 axis CNC centerless grinding machines in China, Ningbo CCMS adheres to the business philosophy of "Quality First, Customer Supreme." Relying on 20 years of industry experience, a professional technical team, and a standardized production system, we provide customers with high-quality products and attentive service.

The company supports customized production, providing customized equipment solutions based on specific customer needs and offering comprehensive after-sales service to address customer concerns. We look forward to becoming long-term and stable partners with global customers, jointly promoting the development of the precision manufacturing industry.
