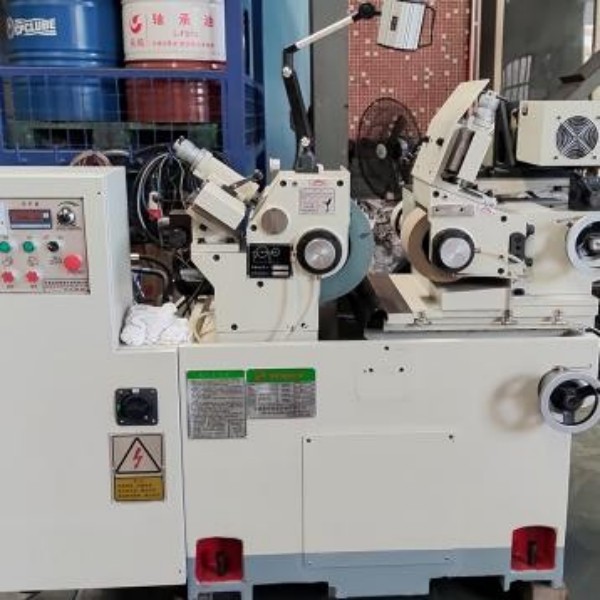

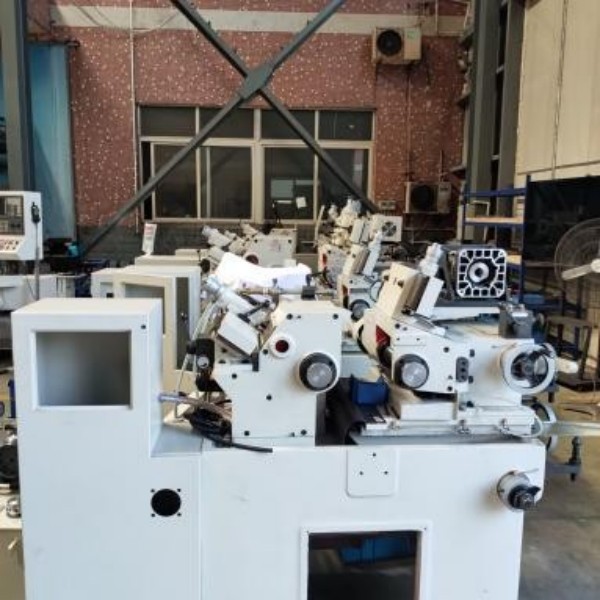

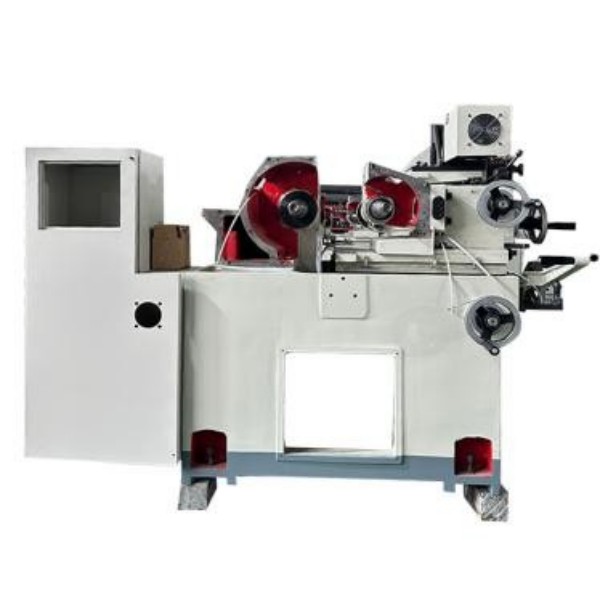

12 series manual centerless grinding machine
Ningbo CCMS Machinery Industry Co., Ltd. is a professional Chinese manufacturer of 12 series manual centerless grinding machines, specializing in their R&D, production, and sales for 20 years. As a high-quality global supplier, we own our own factory and high-precision machining centers imported from Japan and South Korea. Our products cover both hydrodynamic and hydrostatic structures, and we support customized production. Having cultivated the European and American markets for many years, we sincerely hope to become your long-term partner thanks to our stable precision and reliable quality.

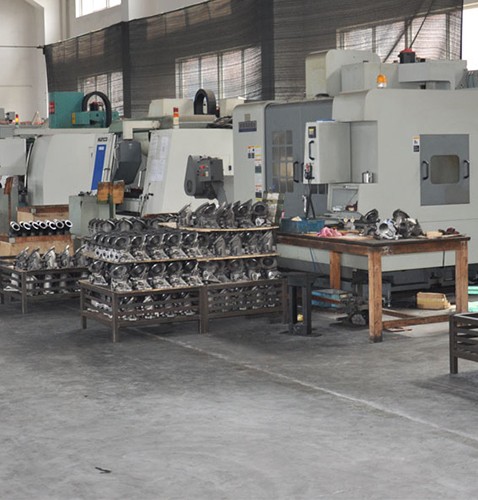

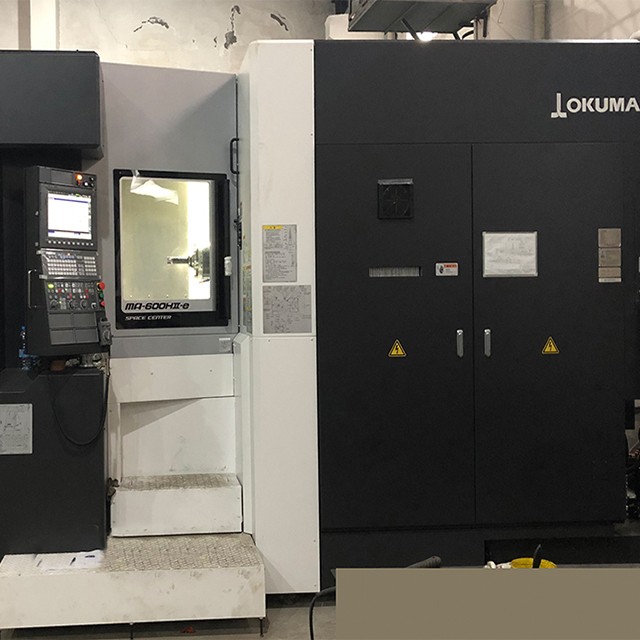

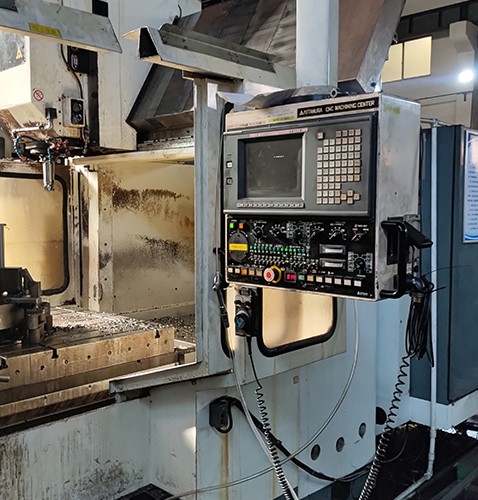

As a manufacturer specializing in 12-series manual centerless grinding machines, Ningbo CCMS Machinery Industry Co., Ltd. is equipped with Haitian gantry machining centers (accuracy up to 0.01 mm) and imported guideway grinding machines from Japan and South Korea. We implement standardized workshop management throughout the entire process, controlling quality from R&D to finished product delivery. With professional manufacturing capabilities at our core, we are a trusted centerless grinding machine supplier in the global market.
Product Parameter
| Item | GY305-150-J |
| Grinding dia.range of stand.worktable(mm) | 1-30 |
| Grinding dia.range of special worktable(mm) | 30-60 |
| Sand wheel size(ODxWxID)(mm) | 305×150×120 |
| Guide wheel size(OD×WxID)(mm) | 305×150×120 |
| Sand wheel speed(RPM) | 1950 |
| Guide wheel speed(Servo cont.var.speed)(RPM) | 1-230 |
| Driven motor of sand wheel(KW) | 5.5(7.5HP) |
| Driven motor of guide wheel(KW) | 2 |
| Driven motor of oil pump(KW) | 1.5(2HP) |
| Driven motor of cooling pump(HP) | 1/4 |
| Feeding handw heel scale of guide wheel | 3.5mm/r,0.02mm/scale |
| Fine tuning handwheel scale of guide wheel | 0.10mm/r,0.001mm/scale |
| Feeding handwheel scale of w orktable | 0.20mmlr.0.001mm/scale |
| Fne tuning handwheel scale of worktable | 0.20mmlr.0.001mm/scale |
| Feeding handwheel scale of sand wheel triming | 1.25mm/r,0.01mm/scale |
| Feeding handwheel scale of guide wheel triming | 1.25mm/r,0.01mm/scale |
| Tit angle of guide wheel | +5~-3° |
| Triming angle of guide wheel | +5~-5° |
| Rotation angle of guide wheel | +5~-5° |
| Machine dimension(LxW×H)(mm) | 1910×1300×1470 |
| Pack dimension(LxW×H)(mm) | 1970×1590×1600 |
| Net weight(KG) | 1500 |
| Gross weight(KG) | 1700 |
Core Product Advantages
1.Durable Structure
The 12 series manual centerless grinding machine body is made of high-quality castings, optimized through natural aging and heat treatment processes, resulting in minimal deformation and a long service life. The grinding wheel (GW) and guide wheel (RW) adopt a cantilever design, facilitating wheel replacement. The grinding wheel is fixed to the machine bed, ensuring more stable and reliable operation.
2.High-Precision Control

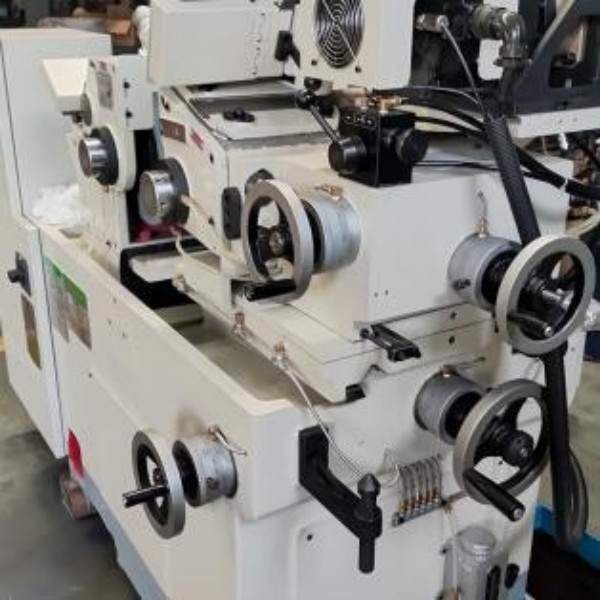

The cross roller guide rail, combined with a servo motor and ball screw, achieves precise feed of the guide wheel, with a minimum feed amount of 0.001mm driven by the servo motor. The grinding wheel dresser is driven by a servo motor and ball screw for feed and reciprocating. The guide wheel dresser supports stepless speed regulation, offering flexible operation and outstanding precision.
Application Scenario

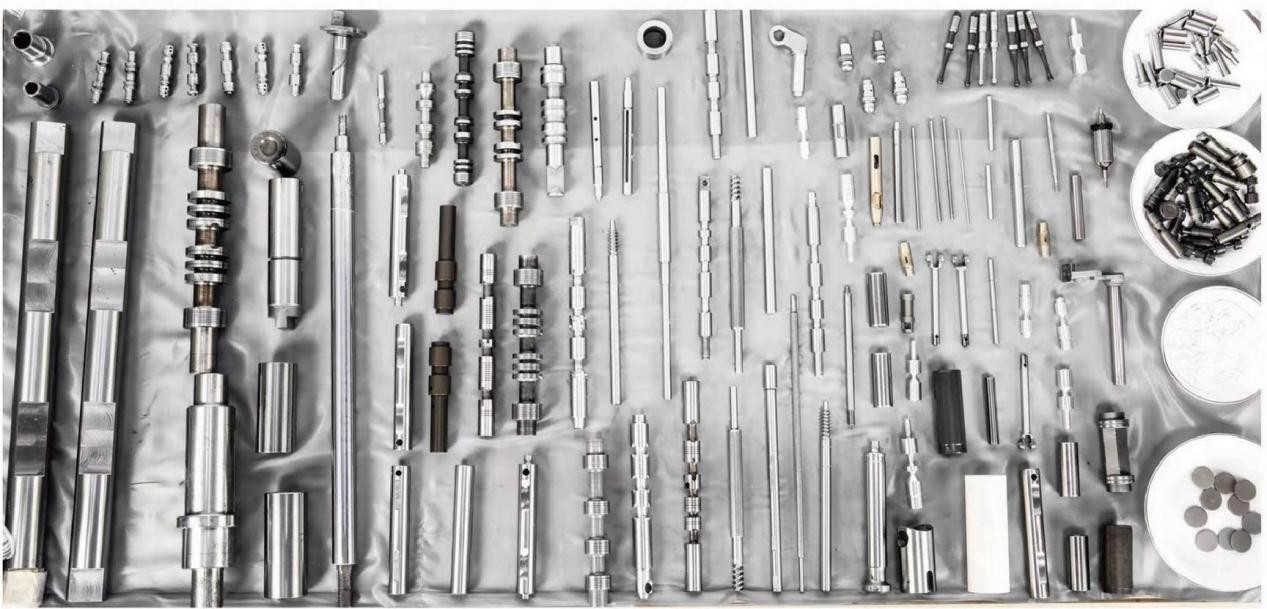

The 12 series manual centerless grinding machine is compatible with both hydrodynamic and hydrostatic structures, and is widely used in precision manufacturing fields such as automotive and motorcycle parts, electrical appliances, molds, cutting tools, tungsten steel, ceramics and glass, medical devices, and aerospace, meeting the needs of high-precision batch processing of small and medium-sized workpieces.
Cooperation Vision
Leveraging its robust manufacturing capabilities and 20 years of industry experience, Ningbo CCMS Machinery Industry Co., Ltd. is committed to quality, supporting customized production and comprehensive after-sales service. We continuously expand global cooperation to help our partners improve production efficiency and product quality, building a long-term, mutually beneficial partnership.
