Excavator Attachment Hydraulic Auger Drill Drive for Deep Hole Drilling

The CCMS Excavator Attachment Hydraulic Auger Drill Drive for Deep Hole Drilling, developed by combining years of production practice with cutting-edge international technology, can transform standard excavators into efficient deep hole drilling equipment, adaptable to various geological conditions. Ningbo CCMS Machinery Industry Co., Ltd. has focused on the R&D, production, and sales of planetary gear reducers for over 20 years, and is a professional factory and leading manufacturer in China.
The company has cultivated the European and American markets for many years. Its core advantage lies in its ability to customize products according to customer needs. With strict quality control, advanced manufacturing technology, and extensive engineering experience, it establishes long-term cooperative relationships with customers based on reliable performance, professional technology, and comprehensive after-sales service.

Product Parameter:

Core Performance Advantages

1. Superior Load Capacity: Optimized and reinforced internal power components significantly improve radial and axial load capacity during deep hole drilling.
2. Superior Contamination Resistance: A sealed, robust shell design effectively prevents the intrusion of impurities such as mud, sand, and moisture, adapting to harsh construction environments.
3. High Continuous Power: An optimized planetary gear system provides stable high power output, ensuring efficient continuous operation without performance degradation.
4. High Efficiency and Low Heat Generation: High mechanical and volumetric efficiency reduces internal friction and load, lowers heat generation, reduces component wear, and extends service life.

Technical Features

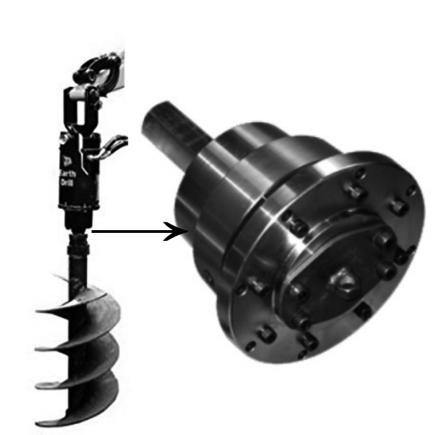

This Excavator Attachment Hydraulic Auger Drill Drive for Deep Hole Drilling is precisely assembled from three core modules, ensuring smooth power transmission and reliable operation:

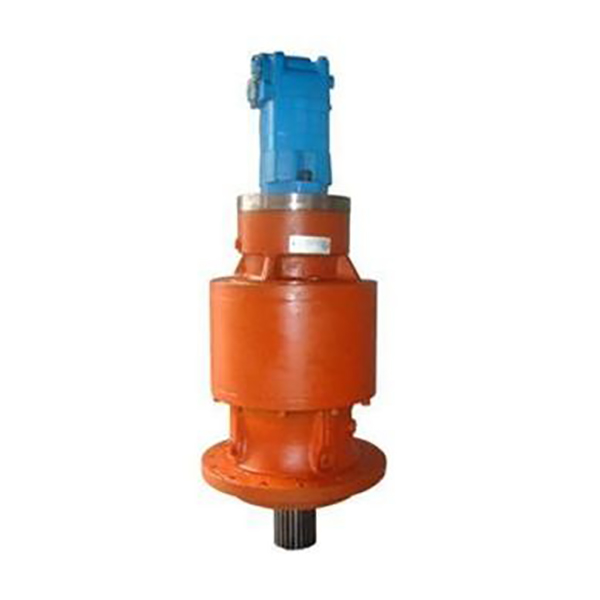

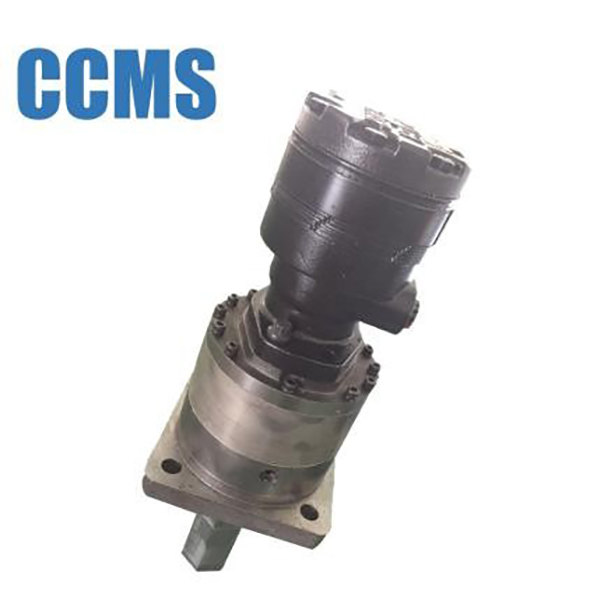

1. Drive Unit (Hydraulic Motor): A high-efficiency hydraulic motor serves as the power source, converting the excavator's hydraulic flow into powerful rotary torque.

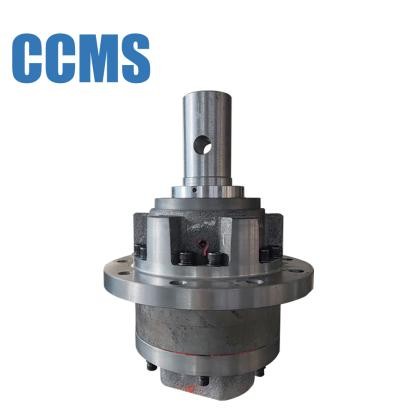

2. Reduction Gear (Planetary Gear Reducer): The core component utilizes an advanced planetary gear transmission mechanism, ensuring uniform force distribution on the gear pairs, high reliability, stable operation, and low noise.

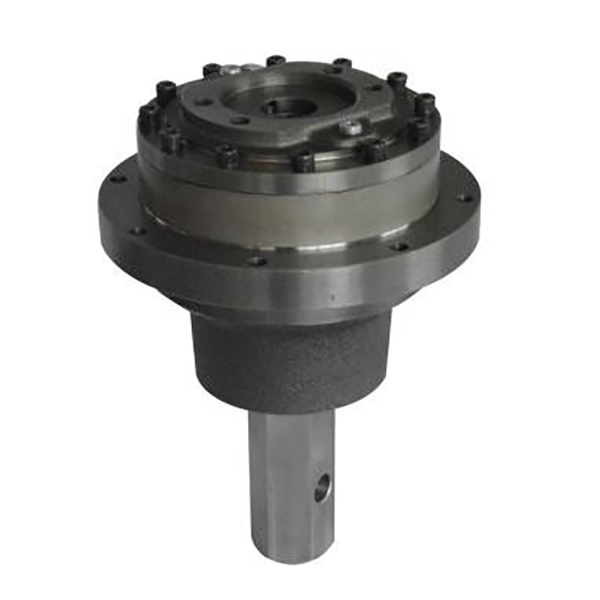

3. Actuator (Output Flange): A robust output flange securely connects to various auger drill bits, ensuring efficient torque transmission to the drill bit.

Structural Advantages

1. Compact and High Torque: The planetary structure design results in a small size and high torque, suitable for the confined working space of excavators.
2. Uniform Stress Distribution: Advanced gear geometry design ensures uniform stress distribution, reducing component fatigue and extending gear and bearing life.
3. Low Noise and Low Vibration: The planetary gear set operates in a balanced manner, with low vibration and noise, reducing operator fatigue and equipment wear.
4. High Reliability: Precision machined from high-quality alloy steel, impact-resistant and wear-resistant, suitable for impact loads in drilling operations.

Real-world Application Case: Mountainous Photovoltaic Pile Foundation Project

1. Project Background: A large-scale photovoltaic power station project in the mountainous area of Northwest China required drilling 5,000 piles, each with a diameter of 200mm and a depth of 2.5m, within a 60-day construction period. The terrain was complex (25° slope), and the geology consisted of mixed soil and gravel layers, making it difficult for large machinery to access.
2. Solution: The construction team selected our CCMS hydraulic auger drive, equipped with a 15-ton excavator, utilizing a high-torque planetary reducer to efficiently penetrate the mixed geological layers.
3. Project Results:
- Outstanding Efficiency: The average drilling time per pile was 10 minutes, with each machine completing 80-100 piles per day, exceeding the daily target.
- Strong Terrain Adaptability: Utilizing the excavator's mobility and the stability of the drill drive, it can operate on a 25° steep slope without requiring ground reinforcement.
- High Reliability: Continuous operation in dusty environments; the sealed design effectively prevents dust, eliminating downtime due to internal contamination.
- Early Completion: 5000 pile foundations completed 15 days ahead of schedule, significantly improving construction efficiency and reducing costs.

FAQ

Q1: What tonnage of excavators is this Excavator Attachment Hydraulic Auger Drill Drive for Deep Hole Drilling compatible with?
The product covers various models, compatible with excavators ranging from 6 to 30 tons. Detailed torque and flow parameters are provided to ensure matching with the excavator's hydraulic system. Custom mounting brackets are also available for seamless integration.

Q2: What are the routine maintenance requirements for the planetary gear reducer?
Maintenance is convenient. Under standard operating conditions, it is recommended to change the high-quality gear oil every 2000 working hours. In harsh environments (such as continuous dust and high temperatures), this can be shortened to 1500 working hours. Regularly check the output flange seal and hydraulic interface.

Q3: Can this drill drive handle rock or hard soil conditions?
Yes. While optimized for soil and clay conditions, the product's high-torque planetary design easily handles lightly compacted gravel and weathered rock formations. For drilling into hard rock, it can be paired with a dedicated carbide drill bit, and the gearbox can withstand drilling impact loads.

Cooperation Invitation

Ningbo CCMS Machinery Industry Co., Ltd., with 20 years of experience in gearbox manufacturing, advanced design, and strict quality control, has created the industry-leading Excavator Attachment Hydraulic Auger Drill Drive for Deep Hole Drilling. As a trusted supplier in China, our products combine performance, durability, and efficiency, suitable for various demanding construction projects worldwide. We sincerely invite customers from all sectors to discuss customized needs and aspire to become your long-term, reliable partner for mutual development.
